Owner | Kay Edgecumbe | ||||
---|---|---|---|---|---|
Owner's Other EVs | 1979 Conzept 1981 NEEV Mobility Scooter 1953 Le Velocette Rebuilt Mobility Scooter 1937 Austin 8 | ||||
Location | Christchurch, Christchurch New Zealand map | ||||
Web/Email | WebPage | ||||

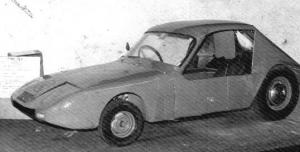

Vehicle | 1974 home built space framed sports car with VW rear end and Morris Minor front suspension | ||||
Motor | Series Wound DC ex forklift motor 36 volts 180 amp | ||||
Drivetrain | Volkswagen | ||||
Controller | resistance plus series parallel switching single 3 way switch gave 48 /72/144 volts | ||||
Batteries | 12, 12.00 Volt, Lead-Acid, Flooded plastic cased 12 volt 120 amp hr | ||||
System Voltage | 144 Volts | ||||
Charger | home built | ||||
Heater | none | ||||
Instrumentation | large ammeter ..speedometer | ||||
Top Speed | 85 MPH (136 KPH) switching was for 3 banks at 48 volts supply then 72 volts 2 banks then 144v all in series a single 3 way switch | ||||
Acceleration | did a wheely once | ||||
Range | 40 Miles (64 Kilometers) 40 miles on electrics but later hybrid converted and un limited | ||||
EV Miles |
| ||||
Seating Capacity | 2 adults | ||||
Curb Weight | 2,500 Pounds (1,136 Kilograms) very light space frame with central battery box | ||||
Tires | front 13 inch rear 15 inch | ||||
Conversion Time | home built over 4 months | ||||
Conversion Cost | batteries cost $900 1974 value rest about $400 | ||||
Additional Features | this was originally designed for the world speed record but during construction the record went up from 110 to 170 plus mph so gave up and made sports car instead | ||||
After the batteries wore down I shifted the motor from the rear of the VW box to the front and rearranged the gear shifting. Then a VW motor was replaced on the box and a hybrid car resulted. This enabled me to demonstrate the car at distant venues both as hybrid and electric. Possibly the first hybrid in New Zealand. Controls were all manual so that a hand 'brake' allowed a foot operated clutch to operate and ether petrol or electric could be used or both. |
