| Owner | Lawrence Rhodes |
|---|---|
| Owner's Other EVs | 1997 Ford Aspire EMB Lectra Vego 600 SX 1980 Jet ElectraVan 750 Schwinn Stingray 2001 Lepton 2007 I-zip Electric Chopper Chinese Electric Tricycle Pickup 2016 Nissan Leaf 2013 Nissan Leaf |
| Location | San Francisco, California United States map |
| | |

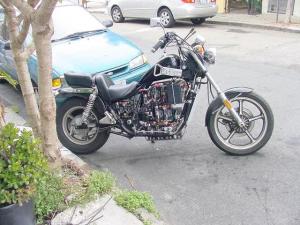

| Vehicle | 1987 Honda VT700 Shadow Chopper style cruiser. |
| Motor | Yale Series Wound DC Forklift motor gone over by Jim Husted |
| Drivetrain | Factory direct drive |
| Controller | Curtis 1221C |
| Batteries | 20 Hawker 13ah, 12.00 Volt, Lead-Acid, AGM Zippy little batteries supposed to put out a lot of amps. |
| System Voltage | 120 Volts |
| Charger | Variac charger |
| DC/DC Converter | YM-5151A 12v 5 amp By 3Y Power Technology |
| Seating Capacity | 2 adults |
| Curb Weight | 500 Pounds (227 Kilograms) |
| Conversion Time | ? |
| Conversion Cost | ? |
| Additional Features | Disconnects are a GE Breaker & a 350 amp Anderson Connector. |

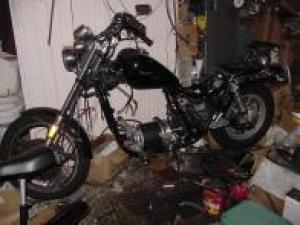

| The bike is almost done. All battery connections are in. I tried charging but I will need regulators or 10 individual chargers. The motor rotates easily at 12vdc. I can turn over the motor with my fingertips & that rotates the back tire. Honda machining is very good. As the rear tire turns over so easily even while it is on the ground I'm hoping this bike will really scoot at 120v and 400 amps. | |
1987 Honda VT700 Shadow
“Silent Shadow”
(under construction)
Last Updated 12-26-2010
