OwnerBill Nicholson
LocationMartinez, California United States map
Email email image
Vehicle Custom

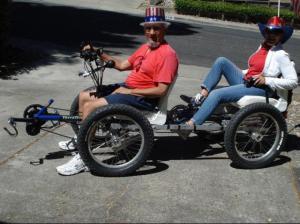

Electric, four wheel, tandem bike, with split
power train for each passenger and motor.
Motor Bafang BBSO2 Brushless DC
Link:
WebPage
Controller
See Bafang BBSO2 kit above
WebPage
Batteries16, 48.00 Volt, Lithium-Polymer
20a, 1000Wh
System Voltage48 Volts
Charger
2amp charger
HeaterPedal power!
InstrumentationCycle Analyst v2.3, shows Wh/mile, avg speed,
battery charge, total miles, and trip miles.
Top Speed21 MPH (33 KPH)
AccelerationNot much
Range45 Miles (72 Kilometers)
Without pedaling
Watt Hours/Mile20 Wh/Mile
EV Miles
Current:850 Miles (1,367 Kilometers)

    As of 7/10/2017
Seating Capacity2 adults
Curb Weight150 Pounds (68 Kilograms)
Hand-built, aluminum chassis, very comfortable
boat seats.
Tires20" tire, 4" wide bicycle tires. 10psi tires
double as shock absorber.
Conversion Time3 years: constant hobby and refined many times
Conversion Cost$6000- replaced burnt out motors and
controllers and went through several body
iterations.
Additional FeaturesFront wheel disc brakes, independent pedaling
system (each person controls a back wheel,
motor also powers one back wheel when needed).
Feel free to reach out to me to learn more
about my bike!
