| Owner | Dlogic | ||
|---|---|---|---|
| Location | Dresden, Saxony Germany map | ||
| Web | WebPage | ||
| Vehicle | 2012 Built from the ground up. :-) | ||
| Motor | Crystalyte X 5403 Brushless DC | ||
| Drivetrain | Powered by a 75 V Lipo battery built from a total of 72 cells. The rear X5 hub motor runs at 8,7 kw. | ||
| Controller | Lyen 24 FET Controller This beast is capable of a max output of 10 KW! | ||
| Batteries | 72 Turnigy TNT ( Turnigy Nano Tech ) , 75.00 Volt, Lithium-Polymer Custom built from 12 TNT packs. Total capacity is 2,4 Kw/h ! | ||
| System Voltage | 75 Volts | ||
| Charger | I - Charger A total of 3 chargers are in use to fill the battery with electrons. :- ) | ||
| Heater | This beast is so hot! How needs a heater? -lol- | ||
| DC/DC Converter | Custom made Converts the 75 V to 12 and gives 10 Ah of power. | ||
| Instrumentation | Cycle Analyst and a custom built dash board with 3 integrated battery medics to monitor the cells voltage. | ||
| Top Speed | 58 MPH (93 KPH) | ||
| Range | 70 Miles (112 Kilometers) At moderate speed and constant pedaling. | ||
| EV Miles |
| ||
| Seating Capacity | 1 adult | ||
| Curb Weight | 154 Pounds (70 Kilograms) | ||
| Tires | Got rid of those bicycle tires. She runs smoothly and with total control on Heidenau K 65 tires now. :-) | ||
| Conversion Time | A little over 2 years. | ||
| Conversion Cost | Priceless as always with all handmade stuff. :-) |

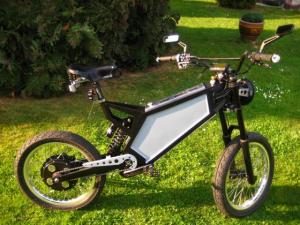

Custom E-bike
“Raptor”
Last Updated 05-18-2014
