Motor Fit-up
OwnerVince Barut
LocationEdmonton, Alberta Canada map
Email email image

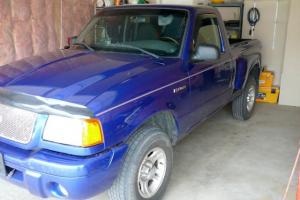

Vehicle2003 Ford Ranger Edge
MotorNetgain Warp 9 dual shaft Series Wound DC
DrivetrainStock 5-Speed Manual Transmission with Clutch
ControllerCurtis 1231C
with PB-6 Pot
Batteries44 Thunder Sky 160A, 3.20 Volt, Lithium Iron Phosphate
System Voltage144 Volts
ChargerElcon PFC2500
HeaterSingle core 1500W
DC/DC ConverterGo Power GPC-45
InstrumentationEV Pro Fuel Gauge
500 A Ammeter
Top SpeedStill Testing - not worth testing on snow packed roads
AccelerationStill Testing - not worth testing on snow packed roads
Range60 Miles (96 Kilometers)
Still Testing - not worth testing on snow packed roads.
Watt Hours/Mile463 Wh/Mile
Testing was on average below 10 F (-12 C) on uneven snow packed roads (Feb-Mar '13). I hope to have better summer
Whr/mi.
EV Miles
Start:95,536 Miles (153,717 Kilometers)
Current:95,806 Miles (154,151 Kilometers)
Total:270 Miles (434 Kilometers)

    As of 4/1/2013
Seating Capacity2 Adults
Conversion Time2.5 yrs with 1 yr break
Thanks to Canadian Electric Vehicle.
