Engine compartment beforeD&D motor installedcontroller/ electronics abd 2 traction bbatteries
OwnerGary Reif
LocationKaukauna, Wisconsin United States map

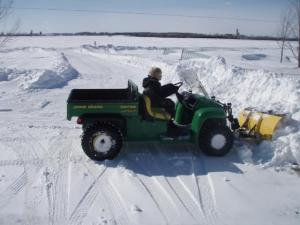

Vehicle2001 John Deere 4 x 2 Gator
MotorD&D Motor Systems, Inc. ES-84C-70 Separately Excited DC
48 VDC Shunt Motor
72 Ft / Lbs Torque Peak @ 1361 rpm's *
25 Ft / Lbs Torque @ 2300 rpm's *
9 HP @ 48 Continuous Rated *
1.125 Single Shaft, 6.7" Dia by 15.0" Long
Double Brush Set
ControllerNavitas TSX500-72V
Batteries6 Everstart Maxx 29, 12.00 Volt, Lead-Acid, Flooded
System Voltage72 Volts
Charger
Noco Genius Gen 3 & Gen 4 chargers. Each
battery get charged seperatly
WebPage
DC/DC Converter
No 12v converter, It has a seperate 12v
Battery
InstrumentationWebPage

WebPage
Top Speed20 MPH (32 KPH)
AccelerationNeck snapping low end torque
Seating Capacity2 adults
Special thanks to Golf Carts Unlimited, Kaukauna WI for huge
help with programing the controller
