OwnerJordan Key
LocationWinston , North Carolina United States map

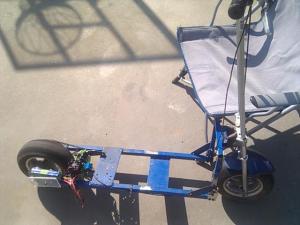

Vehicle Scooter
Motor Brushless DC
400kv EMP brushless airplane motor with 8mm shaft
Drivetrainchain drive: 9 tooth to 80 tooth sprocket
Controller
skywing 100 amp esc with cpu cooler
Batteries0.00 Volt,
I run 14.8v 2600mah lipos primarily and use two 12v 12ah scooter batteries for speed.
System Voltage12 Volts
ChargerRipMax pro-peak
Top Speed25 MPH (40 KPH)
25 with 24v, 17 with 14.8v.
Accelerationbrisk on 14.8v, somewhat scary on 24v
Rangenot too good at full throttle
Seating Capacity2 adults
Curb Weight35 Pounds (15 Kilograms)
with the lipos
Tirespocket rocket tires
Conversion Time12 hrs
Conversion Coststeel- $25
motor/esc- $32
lipos- $24
other-$20
Additional FeaturesMotor and esc both require active cooling so a cpu cooler was put on the esc and an old hairdryer fan cools the motor.
Cooling is a must for these little brushless systems to
last.
Using hall effect scooter throttle and a servo tester as the throttle system.
I plan to continually upgrade it until it looks and performs like a marketable product, but money can make the process slow.
