Owner | The Campbell Family | ||||
---|---|---|---|---|---|
Location | Round Rock, Texas United States map | ||||

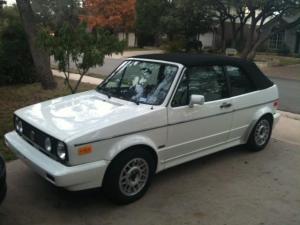

Vehicle | 1989 Volkswagen Cabriolet 4/10/12: An excellent week of driving. Back off the road for some tune up and tweeks, but inching towards daily driver. 4/3/12: First drive to work today. Brilliant. 2/25/12: Work in Progress. All Items purchased from Justin @ Evolve Electrics. Serious consideration for Central Texas heat, so all the cooling options purchased. Replacing the struts with Billstein HDs, and building the rear battery box before we pull the ICE out and begin the conversion. Planning on a 21 day conversion after ICE is pulled. | ||||
Motor | Netgain WarP 9 Series Wound DC 120-170VDC, 5,500 Peak RP. Also installing the WarP 9 Forced Air Cooling Kit. | ||||
Drivetrain | 1.8 F.I. | ||||
Controller | Soliton 1 1000 Amps Continuous: The Soliton1 has a continuous current rating with liquid cooling of 1000A. Running on the integrated cooling fans only, 1000A is typically available for 15-20 seconds before thermal de-rating kicks in. We'll be running with the liquid cooling kit. | ||||
Batteries | 54 GBS 3.2V - 100Ah - LiFeMnPO, 3.20 Volt, Lithium Iron Phosphate | ||||
System Voltage | 172 Volts | ||||
Charger | Elcon PFC-2500 Elcon PFC-2500 Charger (115/230VAC) Cell Count: 54 Pack Voltage: 173VDC (Voltage Configurable) Cell Voltage: 3.2V Cell AH: 100Ah Cell Chemistry: Lithium (GBS) Charge To Voltage: 3.65V Curve: 502 DIN Plug: Yes | ||||
DC/DC Converter | Acme DC-DC 110-370VDC - 636W - 53A Output | ||||
Instrumentation | TBS E-Xpert Pro | ||||
Top Speed | 65 MPH (104 KPH) 4/10/12: 65 easy.... Expected - will update when rolling. 4/3/2012 : 65 is easy. Not sure what the top speed would be, and no need to test. 65 is easy. | ||||
Acceleration | 2/25/12 We'll see, but not looking for a performance car. 4/3/12: Every bit what the 1.8 ICE was. I'm driving her easy still and it's responsive and quick. Very impressed. | ||||
Range | 65 Miles (104 Kilometers) 4/10/12: Showing much better than expected 58 miles. 49% discharge after 41 miles. 4/3/12: Not ready to stress test range yet. To work today (18 miles) was no problem. | ||||
EV Miles |
| ||||
Seating Capacity | 4, but need to upgrade rear coils. The shocks are upgraded to Billstein HD, but need better coils too. | ||||
Curb Weight | 2,300 Pounds (1,045 Kilograms) Expected. Will weigh everything coming out and going in. | ||||
Conversion Time | 2/25/12 Hoping for 21 days from time of removal of ICE. All items purchased from Evolve. Will upgrade struts and build rear battery box under back seat before taking it off the road. 4/3/12: Took 33 days (nights and weekends). Longer than hoped, better than expected. | ||||
Conversion Cost | $16,951.90 + $531 struts - sales of ICE ??? | ||||
Additional Features | Cooling cooling cooling - Liquid cooling on the controller and forced air on the motor. | ||||
2/25/2012: Start Pulling the ICE. One day, not a bad task. Only regret, I wish i had a steam cleaner. Cleaned the engine compartment, but could have done better. I've a function over form guy. 3/15/2012: Almost there. WarP 9, blower kit, controller, batteries, BMS, brake assist installed. 3/22: Tests all check out with BMS, charger, motor, controller, blower, and DC/DC converter. Taking her around the block tonight. Still wiring and connections to tighten up, but almost there. 3/23/2012: Pulled out onto the street. Wife in the passenger seat with the computer hooked up to the BMS. Excellent. All green, 10 mph up the block. All green, 15 mph around the block and home. Stopped in front of the house, and we both said, WE GOTTA DO THAT AGAIN!!!! Brilliant. 4/3/12: First drive into work. We pay Green Mountain for our part of the grid consumption, so a true zero carbon drive to work. EXCELLENT!!! 4/10/12: Rolling along very nicely. |
