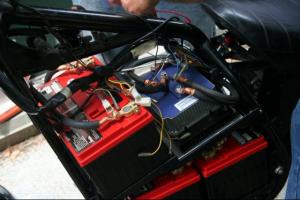

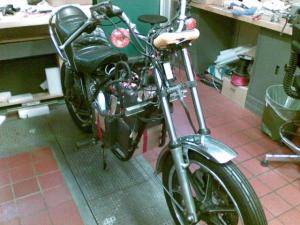

First StepsRear Sprocket36v Battery mountedMotor MountBack of motor mountReady to rollcrazy test batteriesChargerMotor
OwnerJason Siegel
LocationAnn Arbor, Michigan United States map
Email email image
Vehicle1980 Kawasaki KZ440
MotorMars me1004 Permanent Magnet DC

This is a Permanent Magnet, Brush Type, DC Motor with Neodymium Iron Boron Magnets. Capable of 200 amps continuous, and 400 amps for 1 minute. The efficiency is 90%.
Drivetrain12 or 14 tooth sprocket #40 Chain to 72 tooth rear.
ControllerAlltrax AXE 4855
Batteries4 65 AH, 12.00 Volt, Lead-Acid, AGM
Odessey PC1750
System Voltage48 Volts
ChargerDual Pro
48 Volt 15A golf cart charger
Heaterget behind the fairing?
DC/DC Converter
cheap golf cart unit
Instrumentationmicrochip pic with LED display and LEM Hall effect current transducer.
Top Speed40 MPH (64 KPH)
Range20 Miles (32 Kilometers)
EV Miles
Start:6,521 Miles (10,492 Kilometers)
Current:6,532 Miles (10,509 Kilometers)
Total:11 Miles (17 Kilometers)
Seating Capacity1 adult
Curb Weight0
Tiresstock 19"/15"
upgrading to Pirelli MT66s
Conversion Cost$2.5k ish
Started with a ME0201013101 PMSM brushless motor at 36V with a Sevcon controller.
Not powerful enough....

Upgraded to Kelly KBL series controller with 350A peak current (150 continuous A rating) with a 48V battery pack and lost top speed relative to the Sevcon at 36V.

Finally I gave up on the brushless motor and I am going brushed DC with 500A peak. :-)
