OwnerBob Van Gorder
Owner's Other EVs1933 Rolls Royce Shooting Brake
1990 Mazda Miata
1995 Chevrolet S-10
LocationRamona, California United States map
Web/EmailWebPage email image

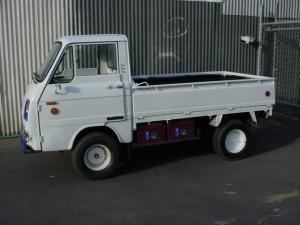

Vehicle1969 CONY Pick Up
MotorAdvanced DC XP-1227-A Series Wound DC
8 inch 28 hp cont. 100 hp peak @ 600 amps
DrivetrainDirect Drive
ControllerCurtis 144v
500 amp
Batteries12, 12.00 Volt, Lead-Acid, AGM
55 amp
System Voltage144 Volts
ChargerK and W BC-20
with booster to 144v
HeaterCalifornia sun
DC/DC Converter
NONE
InstrumentationFuel gauge,amp gauge,and volt meter
Top Speed70 MPH (112 KPH)
The vehicle was designed to do 47 mph as gas driven.
Acceleration12.8 in the 1/8 mile @ 44mph
Range25 Miles (40 Kilometers)
Seating Capacity2 adults
Curb Weight1,500 Pounds (681 Kilograms)
gas weight was 1100
Tires13 inch wheels from older honda
Conversion Time4 weekends
Conversion Cost7K
Additional FeaturesNone
This was my first conversion done 11/05. I have completed two more and have two under
construction.

www.bobsevconversions.com

Sold to Bernie Katz
