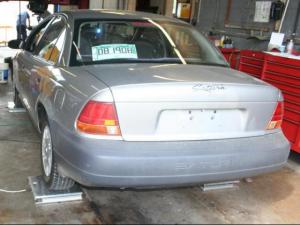

Measure originalMotor, Adaptors and TransmissionRear Battery boxes under ConstructionUnderhood CompletedAxle carrier and lower motor torque moun
OwnerDaniel Lynn
LocationJackson, Tennessee US map
Web/EmailWebPage email image
Vehicle1998 Saturn SL1
4 Door Dark Silver
MotorAdvanced DC FB1-4001A Series Wound DC
9.1" Diameter, Dual shaft
Drivetrain5- Speed manual transmission
ControllerCurtis 1231C-9601
500 amp LIMIT
Batteries18, 8.00 Volt, Lead-Acid, Flooded
System Voltage144 Volts
ChargerQuickcharge OP-144-8
8 AMP 115volt AC input
144 volt DC output
HeaterElectrical liquid heated with pump. Using original heater core and system.
DC/DC ConverterAstrodyne SP-480
Installed on electric panel with Anderson SB-50 connector and some shielding to keep dirt and water away.
Instrumentation14 voltmeter
160 voltmeter
400 Ammeter
original speedometer
original tachometer
Top Speed85 MPH (136 KPH)
AccelerationGoal: 0 to 60 MPH in under 13 Seconds
Range35 Miles (56 Kilometers)
At 55 mph
Watt Hours/Mile450 Wh/Mile
EV Miles
Start:174,000 Miles (279,966 Kilometers)
Current:182,100 Miles (292,998 Kilometers)
Total:8,100 Miles (13,032 Kilometers)

    As of 2/27/2010
Seating Capacity4 adults The 2 passengers in back are a tight fit.
The back seat has been shortened 6 inches because of one of the battery boxes.
Curb Weight3,400 Pounds (1,545 Kilograms)
Before: 2400 pounds
Conversion TimeGoal: by Christmas 2008 [6 months]
Finished December 7th.
Conversion CostUnder $10,000 including donor car but not including labor, tools and overhead.
-Earlier-Have driven over 1000 miles so far. SSSaturn is doing well.
One issue is the battery charger. Takes too long to charge. If the pack is discharged a lot it takes over 12 hours to charge. I may need to get a different charger or a 240 charger.
Charger has been repaired, works better now. Will start using an overnight 240ac charger soon. Driving in 5 degree f weather, pouring rain and snow.
She likes warm days much better.
Heater works good but uses ALOT of energy.
update: over 5,000 EV miles working great, drive every day, fill batteries every 2,000 miles.

update: January 2010: At 8,000 miles batteries are to weak to be useful anymore. The Quick Charge Charger failures, overcharging have shortened their life. Some of the risks, I guess. Will install LiFePo4 next.
