Throttle Response Override Circuit

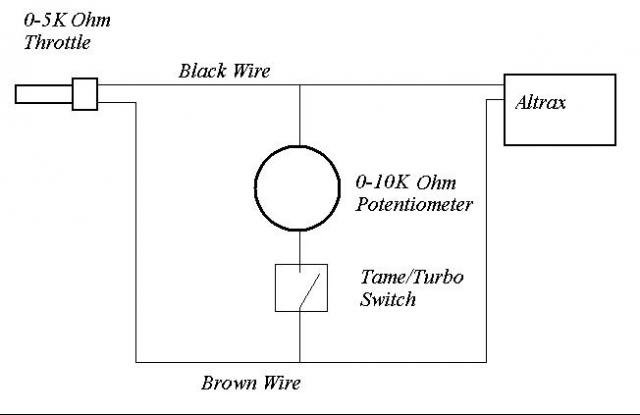

In TURBO mode, the throttle works as normally. In TAME mode, the 0-10K potentiometer is wired in parallel with the 0-5K throttle giving the ability to infinitely override the maximum throttle from 0-3333 Ohms.
