OwnerBernhard Huelsmann-E.
LocationNordenham, Niedersachsen Germany map
Email email image

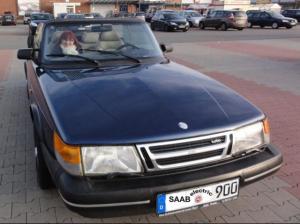

Vehicle1993 Saab 900 Convertible
Motor http://www.fleck-elektroauto.de 3-Phase AC
28 kW continuously
60 kW peek
Drivetrainoriginal gearbox adapted with AC Motor
ControllerCurtis 1238-7501
550 A - 96 V
Batteries34 Winston LiFeYPo4 - 200 Ah, 3.00 Volt, Lithium Iron Phosphate
System Voltage96 Volts
ChargerZivan NG3
BMS System from S.Weisser Germany
Heater4 kW electrical heather m.e.s-DEA S.P.
RM4 Zebra
DC/DC Converter Deutronic DVC 500
500 W
Instrumentationoriginal with additional Display
Top Speed85 MPH (136 KPH)
135 km/h
Acceleration0-62 mph /100 km/h
~17 sec.
Range70 Miles (112 Kilometers)
depending on throttle foot
between 16-18 kWh per 100 km
80 % discharge -> 100-110 km
Watt Hours/Mile170 Wh/Mile
EV Miles
Start:140,452 Miles (225,987 Kilometers)
Current:141,237 Miles (227,250 Kilometers)
Total:785 Miles (1,263 Kilometers)
Seating Capacity4 adults
Curb Weight3,090 Pounds (1,404 Kilograms)
original empty 1310 kg / 2888 lbs
complete with batteries 1495 kg / 3295 lbs
Tiresoriginal
Conversion Time1 Day remove engine
Some month for adapting e-Motor to gearbox
1 Day build in converted engine with gearbox
1 Day for elektrical power steering pump
1 Day for measuring battery space,design boxes
and holder.
Many further days for details.
Official registarion and technical clearence
sinze 19 Sep 2014
Official Registration as "Elektro" Car 22 Sep
2014



Conversion in 4:27 minutes Video on Youtube:
