OwnerDarryl K
Owner's Other EV1972 Volkswagen Beetle
LocationCalgary, Alberta Canada map
Web/EmailWebPage email image

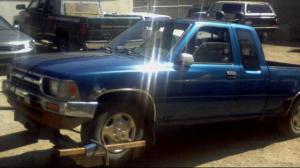

Vehicle1992 Toyota Pickup
This 2WD Ext. Cab could have lived a long life with its legendary
22R-E but an irresponsible young man ran it without oil (actually,
in another way, so will I :))

Some more pics here: WebPage
MotorNetgain Warp 9 Series Wound DC
Repurposed from previous VW Bug project WebPage
DrivetrainStandard 5-speed
ControllerOpen ReVolt Rev 2C
Built from scratch from the open source plans.
Batteries10 C & D Technologies UPS12-370, 12.00 Volt, Lead-Acid, AGM
Repurposed from an aviation company's UPS
system.
System Voltage120 Volts
Charger Cap-charger
Built DIY open source charger similar to
George Wiseman's tech

WebPage

Pics in link at top.
Top Speed70 MPH (112 KPH)
Estimated
Range40 Miles (64 Kilometers)
Estimated
Seating Capacity4 adults
Curb Weight3,700 Pounds (1,681 Kilograms)
Estimated
Conversion TimeA while now :)
Conversion Cost~$6,000 Cdn
Additional FeaturesHow many Open Source components can be homebuilt vs. bought (and how much $ saved)?

- controller < WebPage >

- portable charger < WebPage >

- motor < WebPage >
The point of this project is to rebuild, repurpose and ReVolt! :)

The open source project known as Open ReVolt is due to the hard work of people like Paul,
Sabrina and the global force of volunteers that helped make that free design happen!

Tip o' the hat also to Doug < WebPage > for helping troubleshoot my
Open Revolt 2C.
