Rear Battery BoxTeslaHatch Battery Box, InteriorHatch Battery Box, ExteriorShock with Helper SpringRear Seat Battery Box
OwnerGeorge Wagner
LocationElkton, Maryland United States map
Email email image
Vehicle2004 Pontiac Vibe
Base model
Other vehicle, Tesla Model S
Motor HiPer Drive AC50
Drivetrain1.8 L, 5 spd manual; clutch retained in conversion.
ControllerCurtis 1238R-7601

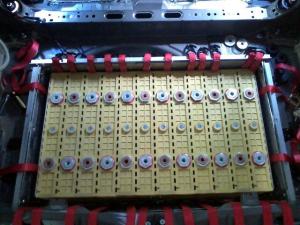

Batteries34 Thunder Sky WB-LYP400AHA, 3.20 Volt, Lithium Iron Phosphate
These batteries are currently sold under the name "Winston", the successor to Thundersky. Placement: 12 under hatch, 12 under rear seat, 10 under hood.
System Voltage108 Volts
ChargerZivan NG3 110V AC (on board), NG5 230V AC (home use)
DC/DC ConverterElcon
Instrumentation0-1000 Amp gauge
Voltmeter gauge (6-16 V)
Curtis Spyglass 840 Display, provides state of charge display (0-100%)
EV Miles
Start:220,000 Miles (353,980 Kilometers)
Current:220,000 Miles (353,980 Kilometers)
Total:0 Miles (0 Kilometers)
Seating CapacityFive
Curb Weight3,600 Pounds (1,636 Kilograms)
Estimated finished curb weight
Conversion Timetbd
Conversion Costtbd
