Tray battery viewTray battery viewTray battery viewEV Power Monitor
OwnerRod Dilkes
Owner's Other EV1989 Suzuki Mighty Boy
LocationMargaret River, Western Australia Australia map
Web/EmailWebPage email image

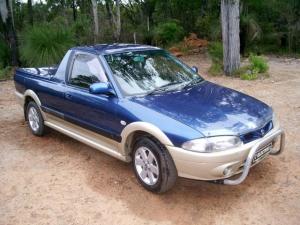

Vehicle2003 Proton JUMBUCK GLSi
Clutchless conversion but with gearbox retained. Front wheel drive with a tray back makes for an easy conversion.
Battery is under the tray.
Completely trouble free motoring.
Motor PMAC motor, 350V 350A Permanent Magnet DC
Radial Flux, Liquid cooled IPM motor. 55kg.
100kW+ available from 2000+ rpm
DrivetrainPMAC motor.
ControllerSevcon Size 8, 350V, 350A
PMAC controller matched to the motor.
Batteries96 CALB/Skyenergy Mixture of LFP90AHA & CALB SE100AHA & CALB CA100FI, 312.00 Volt, Lithium Iron Phosphate
Mixture of two brands and sizes of battery.
EV Power battery management system balances and monitors all the cells.

EV Power V8 BMS cell modules.
System Voltage312 Volts
Charger
SAE J1772 Charge socket.
DC/DC Converter Custom 12V 10A output
Charges a 12V LiFePO4 auxiliary battery. 40Ah
InstrumentationEV Power Monitor
- Volts
- Amps
- Amphours
- % State of Charge
Also a 0-5V fuel gauge powered by the BMS
Top Speed100 MPH (160 KPH)
Goes like a stabbed rat
AccelerationMuch better than the IC version
Range100 Miles (160 Kilometers)
150km @ 100kmh
Watt Hours/Mile242 Wh/Mile
EV Miles
Start:50,000 Miles (80,450 Kilometers)
Current:99,000 Miles (159,291 Kilometers)
Total:49,000 Miles (78,841 Kilometers)
Seating Capacity2 adults
Curb Weight2,900 Pounds (1,318 Kilograms)
1300kg
Tiresx 4
Conversion Time3 Years, Ongoing test bed for new motors and batteries.
Conversion CostAUD$30k+
Additional FeaturesThe clutch pedal is not used since there is now no clutch plate.
So I have commissioned it as a left foot regenerative brake.
The car stops like using the mechanical brake but puts energy back into the battery.
Mechanical right foot brake is still there if required.
Street Legal. In general I need to charge only every few days.
