Standard Mountainbike chainwheelDashboard with battery statusCurrie motorkitMain Circiut braeker and 30 Amp fuseDrivetrainVeTi E-Racer in the dark
OwnerMarc Erkens
Owner's Other EVE-Tracktor
LocationSchinnen, Limburg Netherlands map
Web/EmailWebPage email image
Vehicle2009 Choppa Tricycle

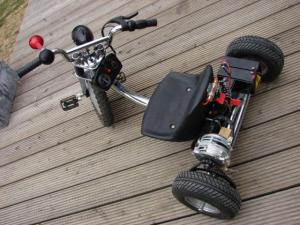

I have made this EV Trike from several parts. First the Choppa Tricycle where I replaced the plastic wheels with rubber ones on steel rims. Then the Currie 24 Volts 600 Watt motor kit and several small parts like Voltmeter and headlight.
MotorCurrie DCM-160 Permanent Magnet DC
Currie DCM-160 Permanent Magnet DC
24 Volt 600 Watt motor at 2600 Rpm
DrivetrainDrivetrain is direct drive with a ratio 1:4 resulting in a maximum speed of 30Kmh
ControllerCurrie
Batteries2 BSOL BFX 12-18, 12.00 Volt, Lead-Acid, AGM
Make BSOL German company.
System Voltage24 Volts
Charger
24 volt
Heaternone
Instrumentation1 voltmeter and headlight
Top Speed25 MPH (40 KPH)
This was a bit of a surprise to me. When I saw my daughter speeding away I decided to reduce the speed, but still have no idea how to do this.
AccelerationBrisk
Range5 Miles ( 8 Kilometers)
Seating Capacity1 child
Curb Weight40 Pounds (18 Kilograms)
TiresRubber tires on metal rims
Conversion Time3 weeks
Conversion Cost375 Euros
Additional FeaturesWebPage
