OwnerZoran Petkovic
LocationBudva - Kovin, Montenegro Montenegro map
Web/EmailWebPage email image
Vehicle2009 E-V Concepts Bela rada
self made car from aluminium and fiberglass
Motor RADE KONCAR - ISTA 134 B4/B5 Series Wound DC
72V 5KW 87,5A 2200 o/min (on plate)
connected in series to 120V


REMOWED - 40V 2KW 1800 o/min (on plate)
connected in series to 120V
Controller
self made electronic PWM controller with
MOSFET transistors

REMOVED - self made electronic PWM
controller with IGBT transistors BUP314
(not work yet)

REMOWED - resistors and solenoids now,
electronic controller under construction
Batteries10, 12.00 Volt, Lead-Acid, Flooded
10*12v 100ah + 1*12v34ah
System Voltage120 Volts
InstrumentationC725 - Car Navigation - Mio Technology
Top Speed50 MPH (80 KPH)
not tested, I need 70 kmh, I think it will be
faster
Seating Capacity2 adults
Curb Weight0
About 550 kg with batteries
Tiresfront -two 145/55R13
rear - one 255/40 ZR 17
Conversion Costabout 10000 euro without batteries
WebPage
I started to build this car in January 2009
(drew on paper), February 2, 2009 started
to built temporary construction model and
mount front suspension and position other
parts. After 15-20 days I started to built
the aluminium chassis and remove temporary
construction, mount rebuilt parts for front
suspension and steering, manufactured rear
fork (3 - wheeler) and other parts. After
that I built the model directly on chassis
from Styrofoam and covered it with

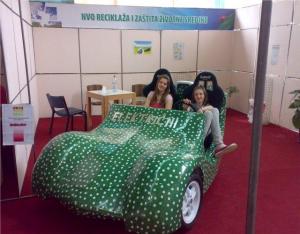

fiberglass. In time race (car was announced
at environment fair in Budva 22-24.4.2009)
I "painted" my car with PVC flower pattern.
Car was presented on fair (not completed)
but in driving state. There is still a lot
of work to do, install electric lights,
instruments, test mechanics (and make
modifications)...
