OwnerVootele Aer
LocationKeila, Harjumaa Estonia map
Email email image
Vehicle2008 No-name Chinese 110ccm3 pitbike

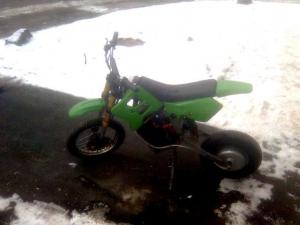

I wanted to build electric scooter, but then I saw this frame at sale super cheap. It had everything except engine and rear wheel.
Motor 1.5kw 3-Phase AC
Hub motor sold by Kellycontroller.com
DrivetrainDirect drive hub motor
ControllerKelly KEB48221
Nice controller with variable regen, programmable.
Batteries4 17Ah, 12.00 Volt, Lead-Acid, Gel
System Voltage48 Volts
ChargerSoneil
2A charging current, automatic operation.
InstrumentationVoltmeter on the "gastank"
Top Speed40 MPH (64 KPH)
AccelerationAccelerates really crazy...
Range10 Miles (16 Kilometers)
Measured at winter -12 degrees C.
At summer the range should be much longer.
Seating Capacity1 adult
Tires14' front, 10' rear
