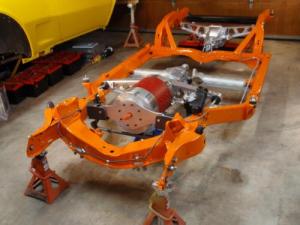

Motor and transmissionTransmission Coupler1976 body going on a 1982 frameMotor fully mountedTouchscreen InterfaceSide ViewMotor with rear mountCAD model of rear motor supportFront Battery Pack
OwnerKeith Stegath
LocationGainesville, Florida US map
Web/EmailWebPage email image
Vehicle1976 Chevrolet Corvette

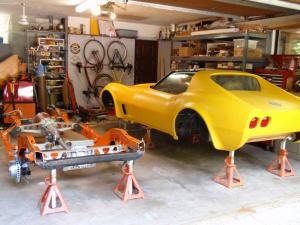

Customized 1976 Corvette being installed on a 1982
frame.
MotorNetgain Warp 11 Series Wound DC
Drivetrain4-speed Borg Warner T-10
2.87 differential
ControllerManzanita Micro Zilla 2k
Found this NOS (New Old Stock) online for a great
price.
Batteries23 Odyssey 1500, 12.80 Volt, Lead-Acid, AGM
Decided that with the Zilla controller I could use
the batteries in series.
System Voltage300 Volts
ChargerNetGain Controls Netgain Controls 3000 Watt
Added 2nd charger - Elcon 2500
Heater1500 watt electric
DC/DC ConverterElcon
Have an Elcon but it's limited to 30 amps. Recently
bought a TDK Lambda "brick" that has 200-400 VDC
input, 50amp output, and multiple bricks can be
wired parallel.
InstrumentationAnalog and touchscreen LCD
Top Speed84 MPH (135 KPH)
That's as fast as I've gone. I had the police speed
check me on the highway to calibrate the
speedometer. Speedo read 70, radar showed 84 - 20%
off.
AccelerationComputer simulation shows +11 sec. quarter mile. 13
sec would be a good start.
Range35 Miles (56 Kilometers)
With a single pack in series (23 batteries). I'm
working on a switch to split to two equal packs of
11 batteries each.
EV Miles
Current:480 Miles (772 Kilometers)

    As of 6/20/2015
Seating Capacity2 adults
Curb Weight3,500 Pounds (1,590 Kilograms)
TiresFront: 235-50 18
Rear: 255-50 18
