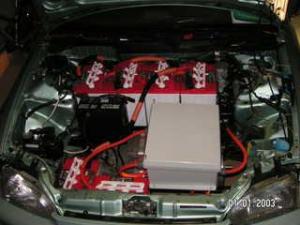

Gaugesmotor, battery boxcontrol boxRear batteriesthrottle
OwnerChris
LocationSandy, Utah United States map
Vehicle1992 Honda Civic
MotorWarfield Warp 9 Impulse Series Wound DC
ControllerKelly KDH12600B
Batteries15 Interstate UGC8 (Us Battery 8V), 8.00 Volt, Lead-Acid, Flooded
System Voltage120 Volts
Heaternone yet, will be ceramic 1500w
DC/DC ConverterIota 55AMP
InstrumentationDigital amp and volt meters, working on Led bar graph meter for 12v system
Top Speed70 MPH (112 KPH)
Have only taken for a couple short drives and have not taken on the freeway yet.
AccelerationGood Acceleration as good as ICE
Range40 Miles (64 Kilometers)
Shooting for 35-40 miles
Seating CapacityFactory 5 seats
Tires16 in Wheels and tires off of a 2008 Honda Fit.
Conversion TimeA lot of planing. and building probably at least 90-100 Hours.
Conversion Cost$8500
I am about 95% done, need to finish the heater, fix a gauge problem, finish battery hold downs and make the vacuum pump more quiet.
