OwnerSM's
Owner's Other EVs2007 Cobra
3 Wheeler
2004 Huffy 26
Road Master
LocationRochester, New York United States map
Email email image
Vehicle2007 Corba Pro

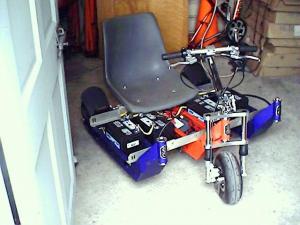

3 Cobra Scooter Put Together
To Make a 3 Wheeler.
Motor Two 450 Watt Motor. Permanent Magnet DC
The Motors i use will turn 6-7000 RPM
With a lot of torque.
DrivetrainTwo Motors Chain Drive.
3 Wheel Disk Breaks.
Controller TWO YI-YUN 48 Volt and a 200 Amp Controller.
Two YI-YUN 48 Volt One for each Motor
at 50-100 amp.And i also use a 200 Amp
Controller Somtimes It's a 48-100 Volt
at 200 amp.
Batteries4, 12.00 Volt, Lead-Acid, Flooded
4 Lead Acid Hooked in Ser to get 48 Volts.Thay are HD 360 Amp Each.
Will be Going to LI-ION Soon.
It will save me Wt. off the 3 Wheeler
and longer ride times.Still will be useing Cool down Times for Motors.
System Voltage48 Volts
Charger
Two 24 Volt 8 Amp Auto Chargers.
Somtimes i will charge all 4 as One 12 Volt With Wheeled Charger.
HeaterSUN
DC/DC Converter
NONE.
InstrumentationNONE
Top Speed45 MPH (72 KPH)
Will Do 45 MPH on Flat Ground.
Will Go Much Faster With Gear Change.
AccelerationVery Fast 0-40 in 4-5 Sec.
Will Go Much Faster if i Change Gears.
But Good for now.Gears are set now for Accl and Powering out of Turns.
RangeAs of Now????.
Batts will run it for about
45 Min on 50 Amp Controller.
And about 20 Min with 200 Amp Controller Full out Racing on Ovel track.
EV Miles
Current: Miles (0 Kilometers)
Seating Capacity1 adult
Curb Weight160 Pounds (72 Kilograms)
3 Wheeler is 160 Lbs.With Battery in.
With me on it 360 Lbs.
Tires10x3x4"
Conversion TimeOff and on About 20 Hrs
Conversion CostAround $1100.00 Plus My Time.
Got Good Deal on the 3 Scooters.
Like it A lot Real fun to Ride.It's not like a Go Kart
to Drive.More like a "ROCKET".This is not a toy for Sure.
