The Back SectionInterior of Ammo CansWood ShelfMounting Brackets
OwnerNorm Blais
LocationHolyoke, Massachusetts United States map
Email email image
Vehicle2008 Jamis / Chrystalyte 408

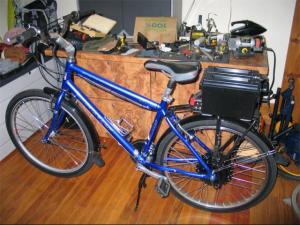

Hybrid frame Jamis bike converted to eBike.
MotorCrystalyte 408R Brushless DC
ControllerCrystalyte 2536
Batteries1, 37.00 Volt, Lithium-Polymer
10AH, 40 amp max drain rate battery by
System Voltage37 Volts
3A smart charger
InstrumentationBatterySpace "Displayer" voltage meter
Top Speed20 MPH (32 KPH)
Range30 Miles (48 Kilometers)
Easily does 30 miles with pedaling, haven't tried much without but it will do most hills no problem.
Curb Weight55 Pounds (24 Kilograms)
Conversion Time3 months
Conversion Cost$1200
Additional FeaturesOne concern was water-proofing, the battery and controller are enclosed in plastic ammunition boxes. All wiring and fixtures are sealed. There is a main disconnect switch on the front of the box - Harbor Freight 92688-4VGA 50 amp capacity @ 24 volts (500 amp surge)
The bike was a trade, but the cost includes upgrading most of the bikes components, as bike was pretty well used. The battery was by far the biggest investment, but at only five pounds and rated for several hundred charges, I am happy with it.
