Electra Greendrive wheel with sprocket2.5KW motor with 13T sprocket120T sprocket
OwnerOrlando T Parker
LocationOmaha, Nebraska United States map
Vehicle1979 Honda GL1100

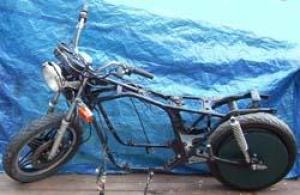

Gl100 had a blown motor It was stripped and now it is going GREEN
MotorMars Permanent Magnet DC
8HP Mars 709 motor upgrade runing at 48 volts
Motor can put out over 19hp
Drivetrain13t on the motor 120T on the drive wheel
275 amps at 48v 5K control pot
Batteries4, 12.00 Volt,
System Voltage48 Volts
Charger Homemade

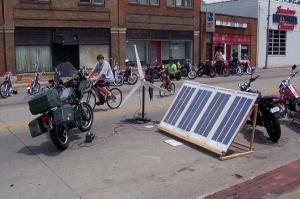

48v 10 amp external charger,48v wind charger,48v solar charger and two 24v 1 amp charger on the bike.
InstrumentationVolt meter
Top Speed50 MPH (80 KPH)
Bike will go up to 50 plus miles per hours
We have it gear to hills and long range driving at up to 30mph( moped speed)
Accelerationunknown at this time(motor is very strong)
Range30 Miles (48 Kilometers)
This bike may pass the 40 to 50 mile range.
EV Miles
Start:100,000 Miles (160,900 Kilometers)
Current:100,000 Miles (160,900 Kilometers)
Total:0 Miles (0 Kilometers)
Seating Capacity2 adults
Curb Weight300 Pounds (136 Kilograms)
Conversion Timestill going
Conversion Coststill adding up
You can go to the web site firstontop for more info as we update our bike project.
Next for us will be a car.
