OwnerKristofor Jensen
LocationChateauguay, Quebec Canada map
Web/EmailWebPage email image

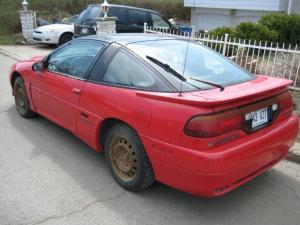

Vehicle1993 Eagle Talon ES
Pretty basic...crank windows & manual locks...blown engine...perfect!
MotorNetgain Warp 9 Series Wound DC
DrivetrainF5M22 transmission ...Electro Auto adapter.
ControllerCafe Electric Z1K-LV
Standard hairball
Batteries49 160Ah LiFePO4, 3.20 Volt, Lithium-Ion
A 100Ah 144VDC AGM pack weighs 960 pounds...LiFePO4 160Ah 144VDC packs weigh only ~600 pounds. Much better capacity...much longer life. More expensive but the ROI looks like it's a lot betters so we're taking the plunge now instead of later.
System Voltage156 Volts
ChargerZivan unchosen
Still sourcing...
HeaterCeramic
DC/DC ConverterIota DCL45
Best price seems to be some solar power place: WebPage
InstrumentationStill sourcing a BMS with a dash mounted HMI.
Top SpeedGOAL: 120kph goal (~72mph)
AccelerationHopefully enough to not get honked at...knock on wood.
Range75km necessary (~50miles)
100km working goal
probably ~150-200km @ 80%DOD w/ 160Ah cells...awesome!
Seating CapacityHoping to keep it at 4...but 2 and better trunk space is also acceptable.
Curb Weight2,500 Pounds (1,136 Kilograms)
pre-conversion weight...will update later...with lithium batteries it should come back to very close to stock.
TiresStock
Conversion TimeAiming at a year.
Conversion Cost$15K budget...so far the big items are on track (controller and motor). Just found the batteries I want and will order the motor adapter as soon as I get the engine pulled out to check if the tranny is okay.
Project just started...donor car being stripped and major components are ordered. Some waiting lists are a bit long so I'm collecting parts this summer. Building over the winter and hopefully will have it on the road by next spring/summer!
