SideFront inlineBackSprocketPhase two of the projectFront view
OwnerJames Beyer
Owner's Other EVs500 Watt Electric Scooter
250 watt Electric Scooter
2008 Phoenix Scooter
LocationLondon, England United Kingdom map
Web/EmailWebPage email image
Vehicle2007 Chopper

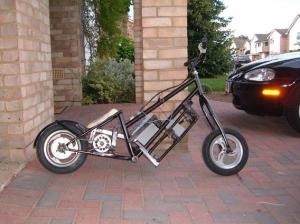

a old push bike with a modified frame that has been arc welded together and has had most of the paint striped off. This "chopper" is in its 3rd stage of development at the moment and needs a controller and larger battery's. I'm going to purchase three li-ion 11.1v 6000mAh laptop battery's to power the scooter due to them being light and not having any memory during their charging and discharging cycles.
MotorJX Motor Co., LTD My-1020 Permanent Magnet DC
This is the motor that I used in my other scooter project but the scooter wasn't any good
Drivetrain#8 chain driven
Controller homebrew
Batteries3 Yuasa unknown, 12.00 Volt, Lead-Acid, Flooded
12 Volt 12 AH adding a forth into series
System Voltage36 Volts
Charger 12 Volt Halfords 1800cc to 2000cc
Heatersolar
DC/DC Converter
unknown
Instrumentationnone of yet
Top Speed22 MPH (35 KPH)
Acceleration is amazing. Zero to top speed is about 3 seconds give or take the riders weight.
Accelerationvery quick, 3 seconds im adding a forth battery with a switching system that enables it.
Range12 Miles (19 Kilometers)
This is a calculated estimate, the old batteries 12 Volt 4 AH gave me a run time of about 20 minutes dependent on the rider's weight
Watt Hours/Mile1296 Wh/Mile
EV Miles
Current: Miles (0 Kilometers)
Seating Capacity1 but has towed people on bikes and scooters
Curb Weight50 Pounds (22 Kilograms)
Used to be less but that was with the lighter 4 AH batteries
Tires12 inch by 2.5 inch
Conversion Timeproject still in development stages the first attempt was about 2 days.
